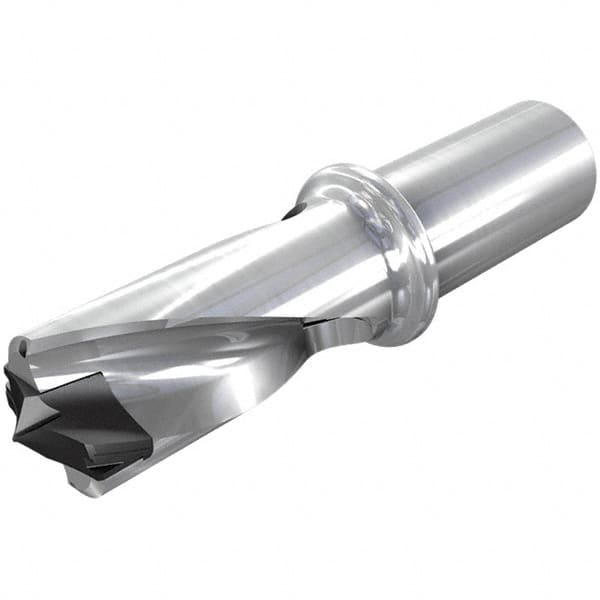

Iscar - 1.299 to 1.335" Diam, 1.5xD, 1.95" Max Drill Depth, 1-1/4" Shank Diam, 5.8" OAL, Replaceable Tip Drill - HFP-IQ Insert, 33 Seat Size, DFN Toolholder, Series ChamIOdrill
Item #: 35852797
Brand: Iscar
Model #: 3260013
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (Decimal Inch) | 1.2990 |
| Maximum Drill Diameter (Decimal Inch) | 1.3350 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.9500 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 33 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (Decimal Inch) | 0.2890 |
| Flute Length (Decimal Inch) | 1.9500 |
| Body Length (Decimal Inch) | 3.4400 |
| Overall Length (Decimal Inch) | 5.8000 |
| Shank Length (Decimal Inch) | 2.3600 |
