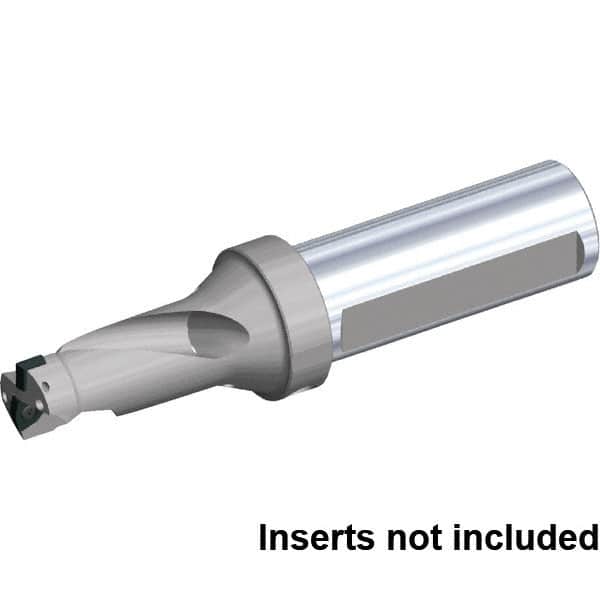

Kennametal - 1-1/2" Max Drill Depth, 2xD, 3/4" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Flange Shank
Item #: 36066066
Brand: Kennametal
Model #: 5689609
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 19.05 |
| Drill Diameter (Inch) | 3/4 |
| Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Depth (mm) | 38.10 |
| Maximum Drill Depth (Decimal Inch) | 1.5000 |
| Maximum Drill Depth (Inch) | 1-1/2 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 138.70 |
| Overall Length/Projection (Decimal Inch) | 5.4606 |
| Insert Compatibility (Outside or Peripheral) | SPGX0603.. |
| Insert Compatibility | DFT0303.. |
| Flute Length (mm) | 40.00 |
| Flute Length (Decimal Inch) | 1.5750 |
| Body Length (Decimal Inch) | 2.4606 |
| Body Length (mm) | 62.50 |
| Shank Length (mm) | 76.20 |
| Shank Length (Decimal Inch) | 3.0000 |
