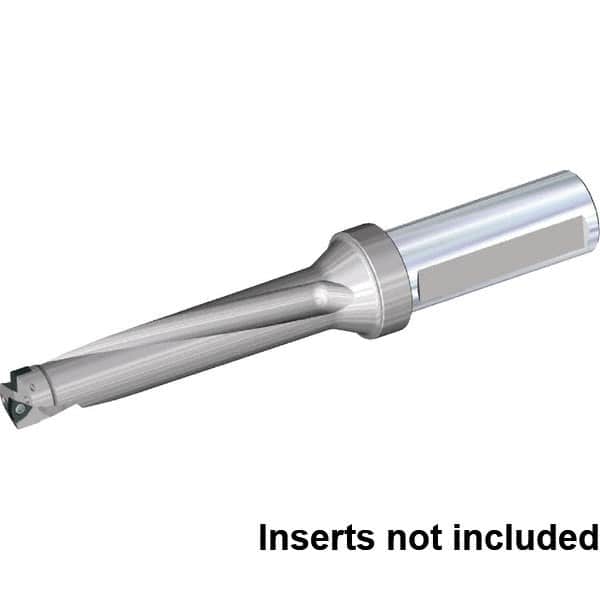

Kennametal - 5.155" Max Drill Depth, 5xD, 1.031" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Flange Shank
Item #: 36067213
Brand: Kennametal
Model #: 5692358
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 26.19 |
| Drill Diameter (Inch) | 1.0310 |
| Drill Diameter (Decimal Inch) | 1.0310 |
| Maximum Drill Depth (Decimal Inch) | 5.1550 |
| Maximum Drill Depth (Inch) | 5.155 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 248.41 |
| Overall Length/Projection (Decimal Inch) | 9.7799 |
| Insert Compatibility (Outside or Peripheral) | SPPX09T3.. |
| Insert Compatibility | DFT05T3.. |
| Flute Length (mm) | 143.00 |
| Flute Length (Decimal Inch) | 5.6299 |
| Body Length (Decimal Inch) | 6.5299 |
| Body Length (mm) | 165.86 |
| Shank Length (mm) | 82.55 |
| Shank Length (Decimal Inch) | 3.2500 |
