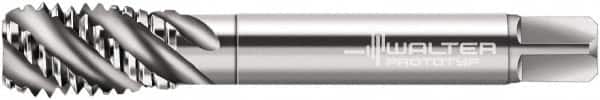

Walter-Prototyp - 1/2-13 UNC 3 Flute 2B Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 3-3/8" OAL, Right Hand Flute, Right Hand Thread, Series A2256760
Item #: 36344422
Brand: Walter-Prototyp
Model #: 5348757
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/2-13 |
| Chamfer | Bottoming |
| Class of Fit | 2B |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.3750 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (mm) | 85.73 |
| Helix Angle | 45 |
| Thread Standard | UNC |
| Material Grade | M35 |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.9450 |
| Thread Length (mm) | 24.00 |
| Flute Type | Fast Spiral |
| Series/List | A2256760 |
| Neck Length (Decimal Inch) | 0.3543 |
| Tapping Depth (Decimal Inch) | 1.2992 |
| Tapping Depth (mm) | 33.00 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Shank Diameter (mm) | 9.32 |
| Square Length (Inch) | 7/16 |
| Material Application | Aluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metals; Spheroidal Cast Iron; Steel; Vermicular Cast Iron |
