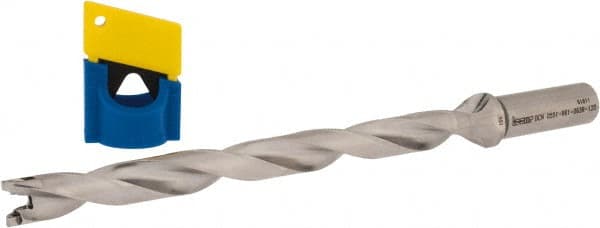

Iscar - 0.551" to 0.567" Diam, 12xD, 6.61" Max Depth, 0.63" Shank Diam, 9.38" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 37804010 Toolholder, Series SumoCham
Item #: 37804010
Brand: Iscar
Model #: 3202830
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.5510 |
| Maximum Drill Diameter (Decimal Inch) | 0.5670 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 6.6100 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 7.4100 |
| Overall Length (Decimal Inch) | 9.3800 |
| Shank Length (Decimal Inch) | 1.9700 |
