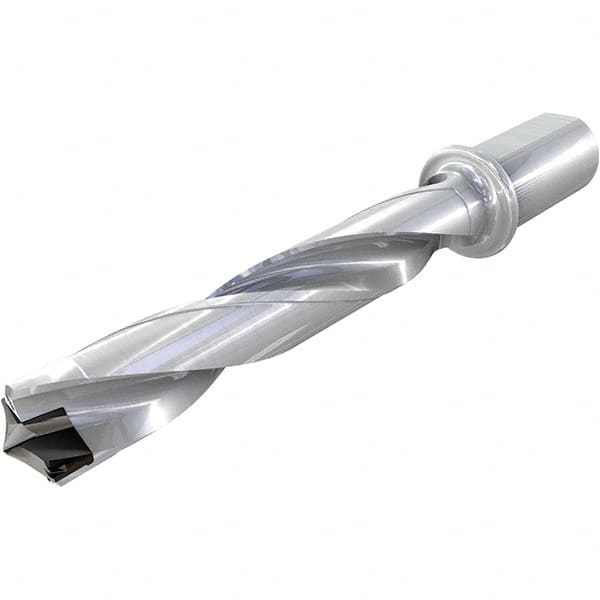

Iscar - 1.417 to 1-29/64" Diam, 5xD, 7.08" Max Drill Depth, 1-1/4" Shank Diam, 11.08" OAL, Replaceable Tip Drill - HFP-IQ Insert, 36 Seat Size, DFN Toolholder, Series ChamIOdrill
Item #: 37944014
Brand: Iscar
Model #: 3260206
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (Decimal Inch) | 1.4170 |
| Maximum Drill Diameter (Decimal Inch) | 1.4530 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 7.0800 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 36 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Flute Length (Decimal Inch) | 7.0800 |
| Body Length (Decimal Inch) | 8.7200 |
| Overall Length (Decimal Inch) | 11.0800 |
| Shank Length (Decimal Inch) | 2.3600 |
