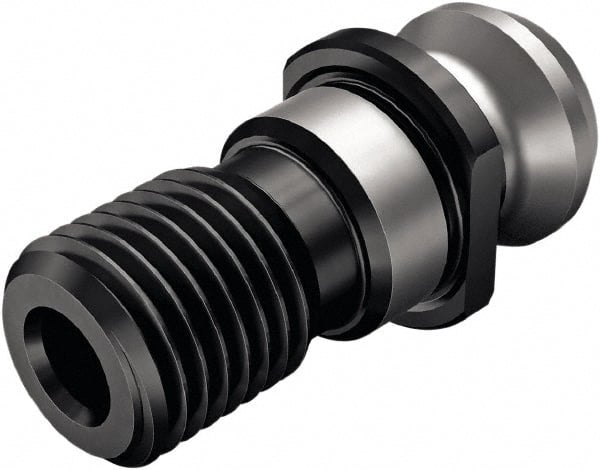

Seco - ISO40 Taper, M16x2 Thread, 45° Angle Radius, Standard Retention Knob - 1-3/4" OAL, 0.746" Knob Diam, 0.646" from Knob to Flange, Through Coolant
Item #: 38379921
Brand: Seco
Model #: 03119898
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | ISO40 |
| Thread Size | M16x2 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 0.7460 |
| Through Coolant | Yes |
| Neck Diameter (Decimal Inch) | 0.5100 |
| Overall Length (Decimal Inch) | 1.7480 |
| Knob to Flange Length (Decimal Inch) | 0.6460 |
