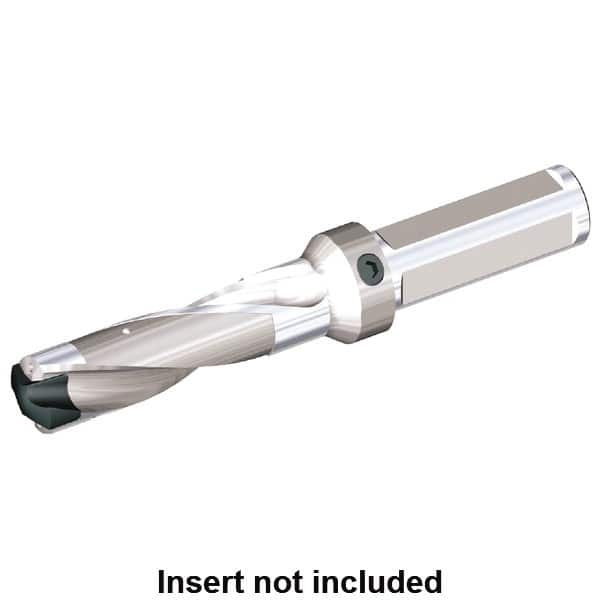

Kennametal - 36.12 to 40mm Diam, 5xD, 180.6mm Max Depth, 1-1/2" Shank Diam, 232.9mm Flute, 342.85mm OAL, Replaceable Tip Drill - KSEM3611HPGM Insert, 10 Seat Size, KSEM Toolholder, Series KSEM
Item #: 38646295
Brand: Kennametal
Model #: 6123761
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 36.12 |
| Minimum Drill Diameter (Decimal Inch) | 1.4220 |
| Maximum Drill Diameter (mm) | 40.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.5740 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 180.60 |
| Shank Diameter (Inch) | 1-1/2 |
| Insert Style | KSEM3611HPGM |
| Insert Seat Size | 10 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 6.00 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.2500 |
| Flute Length (mm) | 232.90 |
| Body Length (mm) | 247.60 |
| Overall Length (mm) | 342.85 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 3.7500 |
