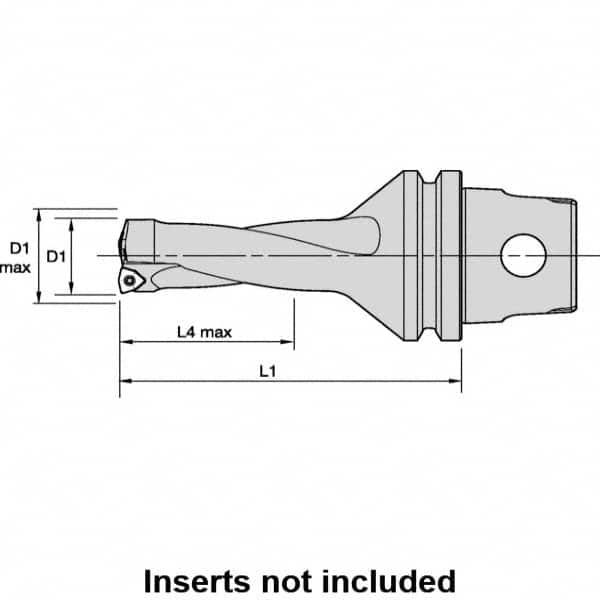

Kennametal - 101.6mm Max Drill Depth, 2xD, 50.8mm Diam, Indexable Insert Drill - 2 Inserts, 50mm Shank Diam, KM50 Modular Connection Shank
Item #: 41140492
Brand: Kennametal
Model #: 1247492
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFT |
| Drill Diameter (mm) | 50.80 |
| Drill Diameter (Decimal Inch) | 2.0000 |
| Maximum Drill Depth (mm) | 101.60 |
| Maximum Drill Depth (Decimal Inch) | 4.0000 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | KM50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.2520 |
| Maximum Drill Diameter (mm) | 57.20 |
| Overall Length/Projection (mm) | 166.62 |
| Overall Length/Projection (Decimal Inch) | 6.5600 |
| Insert Compatibility (Outside or Peripheral) | DFT 0905.. |
| Insert Compatibility | DFT 0905.. |
| Flute Length (mm) | 141.00 |
| Flute Length (Decimal Inch) | 5.5512 |
| Body Length (Decimal Inch) | 6.5600 |
| Body Length (mm) | 166.62 |
| Shank Length (mm) | 31.95 |
| Shank Length (Decimal Inch) | 1.2579 |
| Collar Diameter (mm) | 50.00 |
| Collar Diameter (Decimal Inch) | 1.9685 |
| Series | Drill-Fix |
