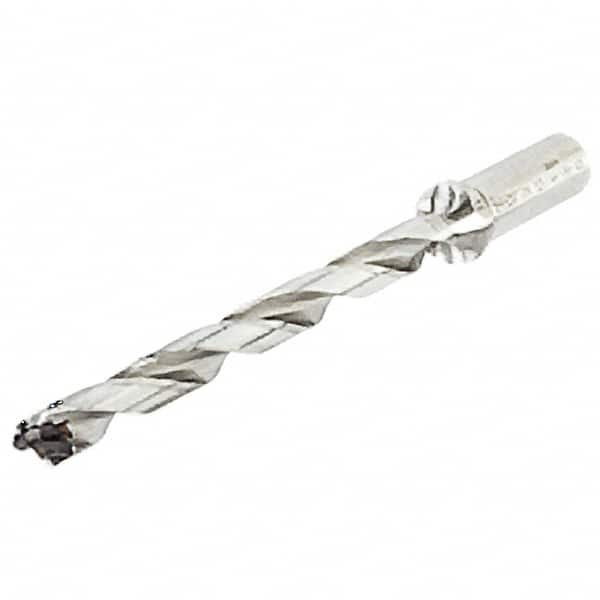

Iscar - 20mm to 20.9mm Diam, 12xD, 240mm Max Depth, 25mm Shank Diam, 327.6mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 20 Seat Size, 45390630 Toolholder, Series SumoCham
Item #: 45390630
Brand: Iscar
Model #: 3202853
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (mm) | 20.90 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (mm) | 240.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 20 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 271.60 |
| Overall Length (mm) | 327.60 |
| Shank Length (mm) | 56.00 |
