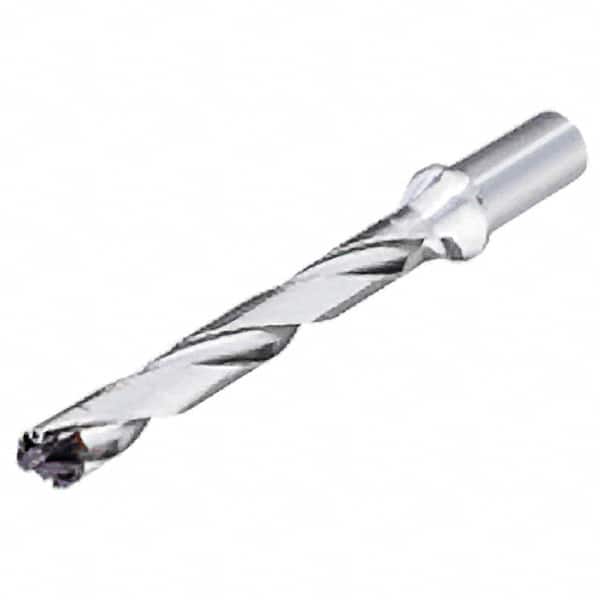

Iscar - 10mm to 10.4mm Diam, 8xD, 80mm Max Depth, 16mm Shank Diam, 144.2mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 10 Seat Size, 45390887 Toolholder, Series SumoCham
Item #: 45390887
Brand: Iscar
Model #: 3202733
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 10.00 |
| Maximum Drill Diameter (mm) | 10.40 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 80.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 10 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 96.20 |
| Overall Length (mm) | 144.20 |
| Shank Length (mm) | 48.00 |
