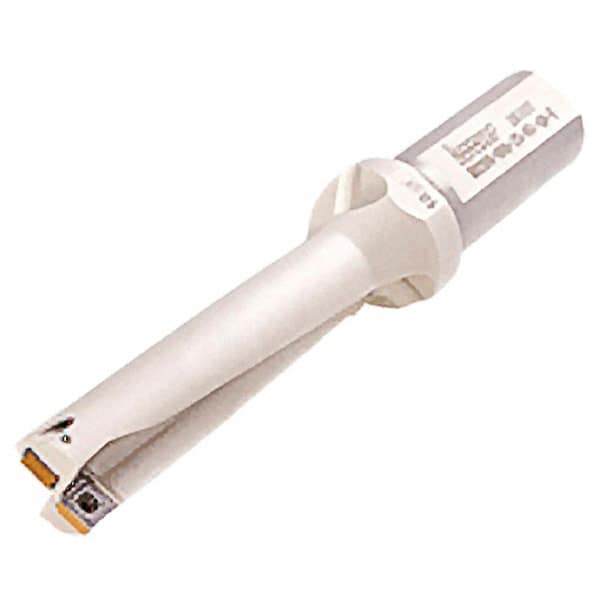

Iscar - 180mm Max Drill Depth, 4xD, 45mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Straight Shank
Item #: 45391950
Brand: Iscar
Model #: 3202334
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 45.00 |
| Drill Diameter (Decimal Inch) | 1.7717 |
| Maximum Drill Depth (mm) | 180.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 40.00 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 51.90 |
| Overall Length/Projection (mm) | 283.00 |
| Insert Compatibility | SOMT-DT; SOMT-GF; SOMX-DT |
| Body Length (mm) | 215.00 |
| Shank Length (mm) | 68.00 |
| Collar Diameter (mm) | 60.00 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank End Coolant Hole Thread Size (Inch) | 3/4-14 |
