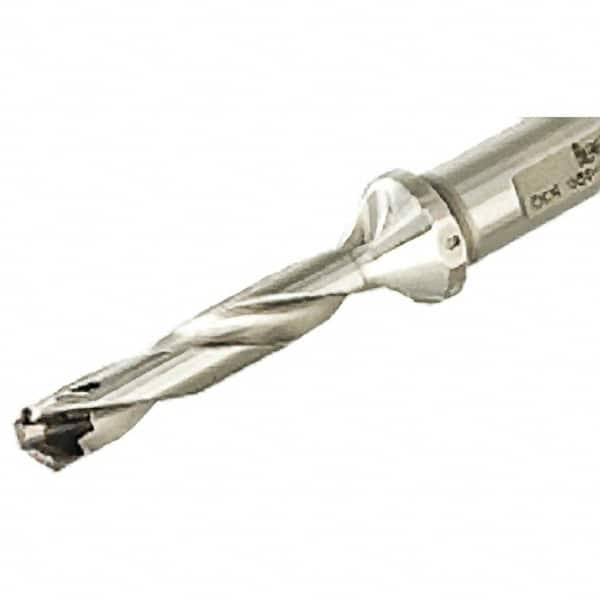

Iscar - 20mm to 20.9mm Diam, 3xD, 60mm Max Depth, 25mm Shank Diam, 147.6mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 20 Seat Size, 45392354 Toolholder, Series SumoCham
Item #: 45392354
Brand: Iscar
Model #: 3260084
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (mm) | 20.90 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 60.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 20 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 91.60 |
| Overall Length (mm) | 147.60 |
| Shank Length (mm) | 56.00 |
