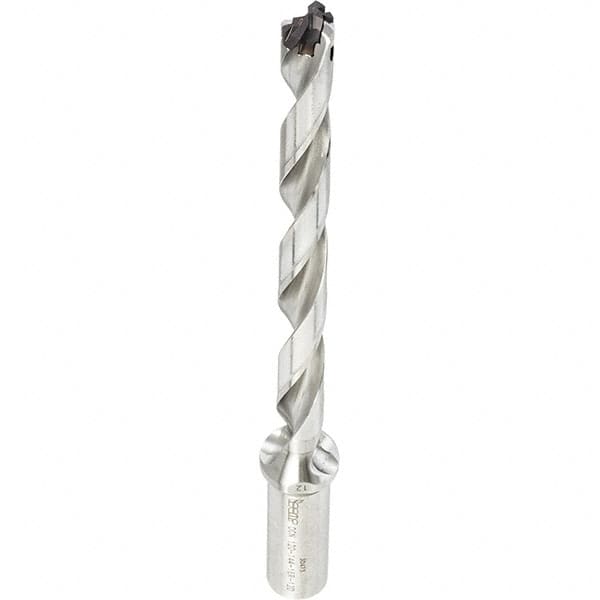

Iscar - 0.335 to 0.351" Diam, 12xD, 4.07" Max Drill Depth, 1/2" Shank Diam, 6.39" OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M, QCP-2M Insert, 8 Seat Size, DCN Toolholder, Series SumoCham
Item #: 46651162
Brand: Iscar
Model #: 3323748
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.3350 |
| Maximum Drill Diameter (Decimal Inch) | 0.3510 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 4.0700 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 8 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (Decimal Inch) | 0.0610 |
| Flute Length (Decimal Inch) | 4.0700 |
| Body Length (Decimal Inch) | 4.6200 |
| Overall Length (Decimal Inch) | 6.3900 |
| Shank Length (Decimal Inch) | 1.7700 |
