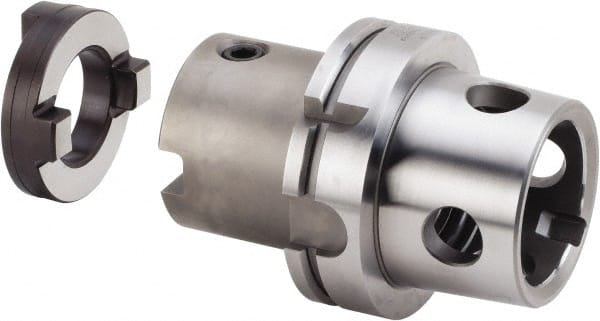

Kennametal - Series HTS, Head Connection 40, 100mm Shank Diam, Drill Body - 69.95mm Drill Body Length to Flange, KM Toolholder, 70mm Nose Diam, 148.85mm OAL, 85mm Drill Body Length, Modular Connection, Through Coolant
Item #: 46862348
Brand: Kennametal
Model #: 4159439
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 40 |
| Shank Diameter (mm) | 100.00 |
| Shank Diameter (Decimal Inch) | 3.9370 |
| Drill Body Length to Flange (mm) | 69.95 |
| Drill Body Length to Flange (Decimal Inch) | 2.7540 |
| Toolholder Style | KM |
| Nose Diameter (mm) | 70.00 |
| Nose Diameter (Decimal Inch) | 2.7560 |
| Overall Length (mm) | 148.85 |
| Overall Length (Decimal Inch) | 5.8602 |
| Gage Length (mm) | 85.00 |
| Gage Length (Decimal Inch) | 3.3465 |
| Shank Type | Modular Connection |
| Shank Length (mm) | 49.95 |
| Shank Length (Decimal Inch) | 1.9665 |
| Through Coolant | Through Coolant |
