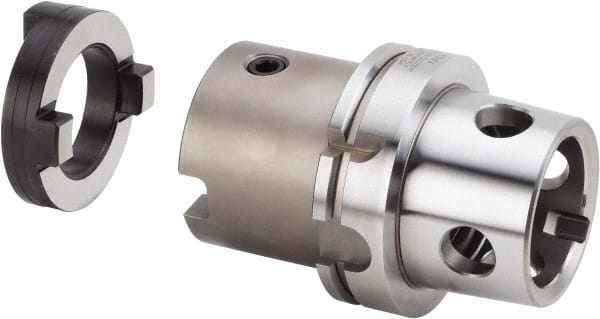

Kennametal - Series HTS, Head Connection 50, 100mm Shank Diam, Drill Body - 76.95mm Drill Body Length to Flange, KM Toolholder, 80mm Nose Diam, 155.85mm OAL, 90mm Drill Body Length, Modular Connection, Through Coolant
Item #: 46867388
Brand: Kennametal
Model #: 4159440
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 50 |
| Shank Diameter (mm) | 100.00 |
| Shank Diameter (Decimal Inch) | 3.9370 |
| Drill Body Length to Flange (mm) | 76.95 |
| Drill Body Length to Flange (Decimal Inch) | 3.0295 |
| Toolholder Style | KM |
| Nose Diameter (mm) | 80.00 |
| Nose Diameter (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 155.85 |
| Overall Length (Decimal Inch) | 6.1360 |
| Gage Length (mm) | 90.00 |
| Gage Length (Decimal Inch) | 3.5433 |
| Shank Type | Modular Connection |
| Shank Length (mm) | 49.95 |
| Shank Length (Decimal Inch) | 1.9665 |
| Through Coolant | Through Coolant |
