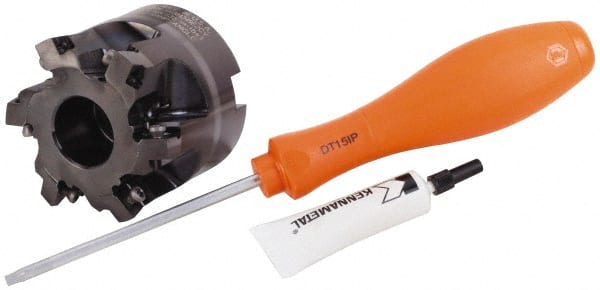

Kennametal - 63mm Cut Diam, 22mm Arbor Hole, 3mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 6 Inserts, SD.T 1204... Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series Z-Axis Mills
Item #: 46869186
Brand: Kennametal
Model #: 3873467
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SD.T 1204... |
| Series | Z-Axis Mills |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | DM |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 1.9685 |
| Hub Diameter (mm) | 50.00 |
| Maximum Body Diameter (Decimal Inch) | 2.3504 |
| Cutting Direction | Right Hand |
| Pitch | Medium |
| Complete Insert Compatibility | SD.T 1204PD.R |
