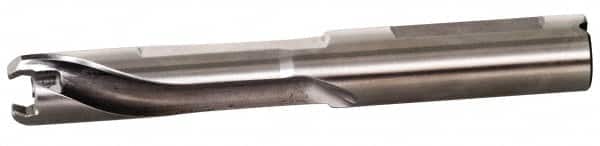

Kennametal - 8.5 to 9mm Diam, 4xD, 36mm Max Depth, 9mm Shank Diam, 52mm Flute, 91mm OAL, Replaceable Tip Drill - KTIP0850HPM Insert, G Seat Size, Series KenTIP
Item #: 48581409
Brand: Kennametal
Model #: 2888087
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 8.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.3346 |
| Maximum Drill Diameter (mm) | 9.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.3543 |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Depth (mm) | 36.00 |
| Shank Diameter (mm) | 9.00 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Insert Style | KTIP0850HPM |
| Insert Seat Size | G |
| Through Coolant | NonThrough Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 1.50 |
| Flute Length (mm) | 52.00 |
| Flute Length (Decimal Inch) | 2.0472 |
| Overall Length (mm) | 91.00 |
