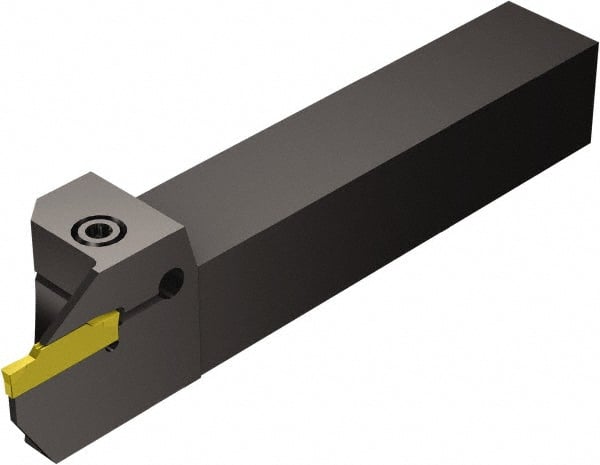

Sandvik Coromant - F123, Internal or External, Left Hand, 22mm Max Depth of Cut, Indexable Grooving Tool Holder - N123H2-0400-0004-TF Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 125mm OAL
Item #: 49344849
Brand: Sandvik Coromant
Model #: 5856795
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8661 |
| Maximum Depth of Cut (mm) | 22.00 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Toolholder Style | F123 |
| Insert Compatibility | N123H2-0400-0004-TF |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Profiling |
| Insert Seat Size | H |
| Maximum Workpiece Diameter (mm) | 52.50 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.0669 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5856795 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123H2-0400-0004-TF |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.00 |
