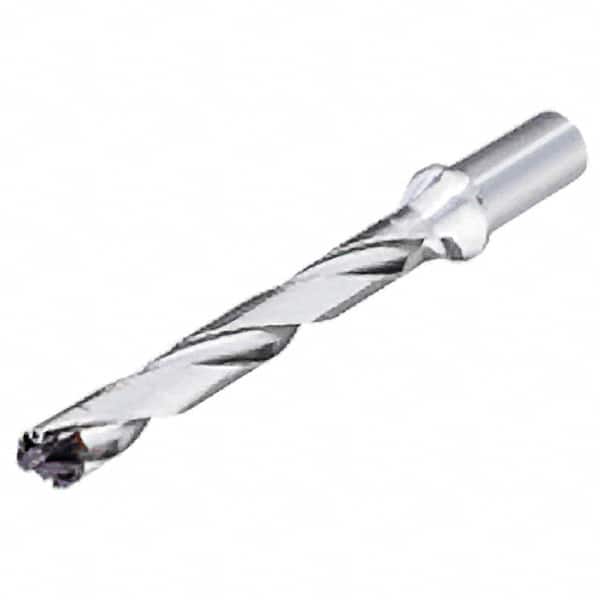

Iscar - 26 to 26.9mm Diam, 12xD, 208mm Max Drill Depth, 32mm Shank Diam, 309.3mm OAL, Replaceable Tip Drill - 12.1772" OAL, 12xD Drill Depth by Diam Ratio
Item #: 50066851
Brand: Iscar
Model #: 3203113
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (mm) | 26.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.0236 |
| Maximum Drill Diameter (mm) | 26.90 |
| Maximum Drill Diameter (Decimal Inch) | 1.0591 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 8.1890 |
| Maximum Drill Depth (mm) | 208.00 |
| Shank Diameter (mm) | 32.00 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 249.30 |
| Body Length (Decimal Inch) | 9.8150 |
| Overall Length (mm) | 309.30 |
| Overall Length (Decimal Inch) | 12.1772 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
