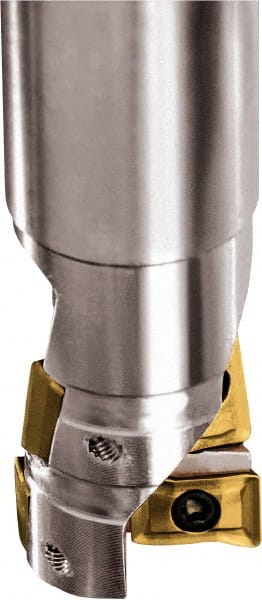

Kyocera - 17mm Cut Diam, 4.5mm Max Depth of Cut, 16mm Shank Diam, 190mm OAL, Indexable Square Shoulder End Mill - GOMT 08T208ER-D, JOMT 08T208ER-D Inserts, Cylindrical Shank, 90° Lead Angle
Item #: 50387877
Brand: Kyocera
Model #: 8812561
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 17.00 |
| Cutting Diameter (Decimal Inch) | 0.6693 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length/Projection (mm) | 190.00 |
| Overall Length/Projection (Decimal Inch) | 7.4803 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.177165 |
| Number of Cutter Inserts | 4 |
| End Mill Type | End Mill |
| Head Length (mm) | 19.00 |
| Head Length (Decimal Inch) | 0.7480 |
| Insert Compatibility | GOMT 08T208ER-D; JOMT 08T208ER-D |
| Shank Length (Decimal Inch) | 6.2598 |
| Shank Length (mm) | 159.00 |
