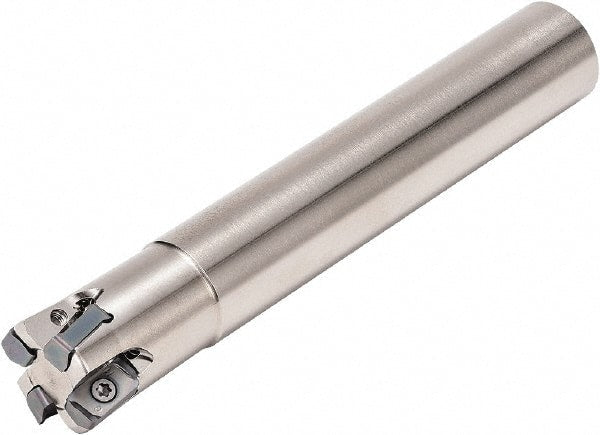

Kyocera - 28mm Cut Diam, 1mm Max Depth, 25mm Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, LOGU 030310ER-GM Insert, MFH Toolholder, Through Coolant
Item #: 50390491
Brand: Kyocera
Model #: 8844034
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 28.00 |
| Cutting Diameter (Decimal Inch) | 1.102362 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.984252 |
| Number of Cutter Inserts | 5 |
| Insert Style | LOGU 030310ER-GM |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 5 |
| Maximum RPM | 12400 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Head Length (mm) | 40.00 |
| Manufacturers Catalog Number | MFH 28-S25-03-5T |
