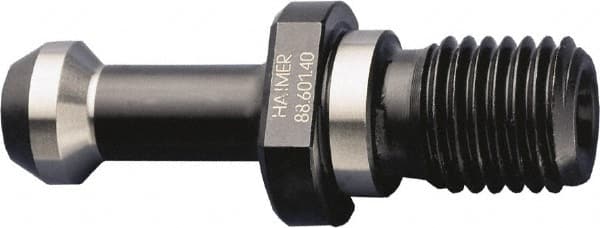

HAIMER - BT30 Taper, M16x2 Thread, 45° Angle Radius, Standard Retention Knob - 0.5905" Knob Diam, 1.1024" Flange Thickness
Item #: 52240637
Brand: HAIMER
Model #: 88.601.40
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | BT30 |
| Thread Size | M16x2 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 0.5905 |
| Knob Diameter (mm) | 15.00 |
| Through Coolant | No |
| Flange Thickness (Decimal Inch) | 1.1024 |
