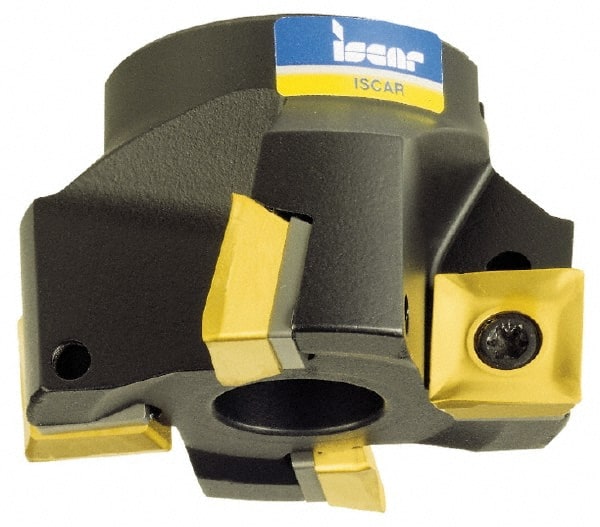

Iscar - 9 Inserts, 3" Cut Diam, 1" Arbor Diam, 0.38" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, S/X/QPMT 1004... Insert Compatibility, Series F90SP
Item #: 52709623
Brand: Iscar
Model #: 3100608
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | S/X/QPMT 1004... |
| Series | F90SP |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3800 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | F90SP-10 |
| Number of Flutes | 9 |
