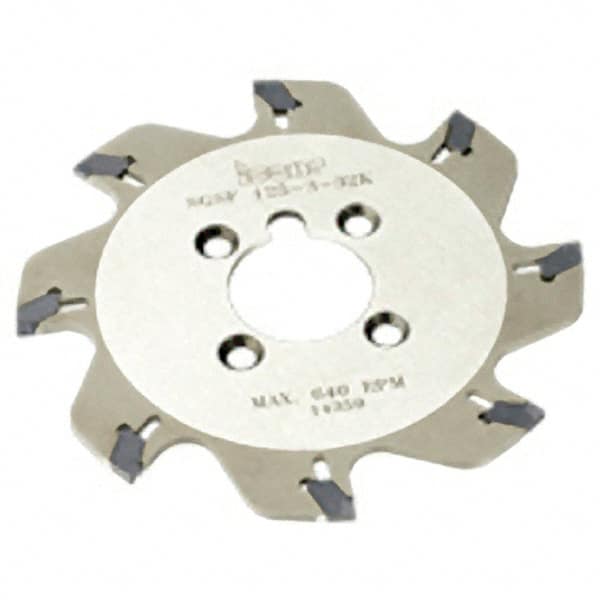

Iscar - Arbor Hole Connection, 1.36" Depth of Cut, 4.92" Cutter Diam, 1-1/4" Hole Diam, 8 Tooth Indexable Slotting Cutter - SGSF Toolholder, GSFN Insert
Item #: 52734027
Brand: Iscar
Model #: 2301372
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (Decimal Inch) | 1.3600 |
| Cutter Diameter (Decimal Inch) | 4.9200 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 8 |
| Toolholder Style | SGSF |
| Series | Self-Grip(SGSA) |
| Insert Style | GSFN |
| Staggered Tooth | No |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 640 |
| Minimum Cutting Width (Decimal Inch) | 0.2170 |
| Maximum Cutting Width (Decimal Inch) | 0.2560 |
| Hub Diameter (Decimal Inch) | 2.1600 |
