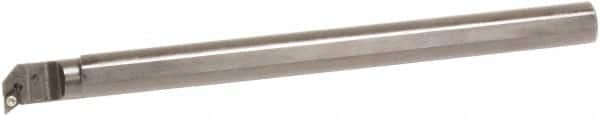

Sumitomo - 0.813" Min Bore Diam, 8" OAL, 5/8" Shank Diam, BSDJO Indexable Boring Bar - DCGT 21.5 Insert, Screw Holding Method
Item #: 53946844
Brand: Sumitomo
Model #: 2000W1M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | BSDJO |
| Minimum Bore Diameter (Decimal Inch) | 0.8130 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | DCGT 21.5 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.4310 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -6 |
| Complete Insert Compatibility | DCGT 21.5 |
| Toolholder Material | Steel |
