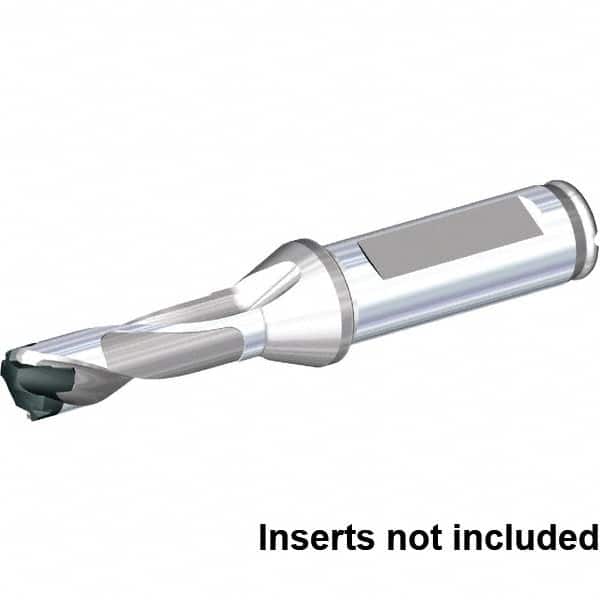

Kennametal - Series KenTIP, Head Connection U, 8xD, 3/4" Shank Diam, Drill Body - 165.1mm Drill Body Length to Flange, KTIP Toolholder, 16.03mm Nose Diam, 215.1mm OAL, 165.1mm Drill Body Length, 159.6mm Flute Length, Through Coolant
Item #: 54415609
Brand: Kennametal
Model #: 5307875
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Head Connection Size | U |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Drill Body Length to Flange (mm) | 165.10 |
| Drill Body Length to Flange (Decimal Inch) | 6.5000 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 16.03 |
| Nose Diameter (Decimal Inch) | 0.6310 |
| Overall Length (mm) | 215.10 |
| Overall Length (Decimal Inch) | 8.4685 |
| Gage Length (mm) | 165.10 |
| Gage Length (Decimal Inch) | 6.5000 |
| Flute Length (mm) | 159.60 |
| Flute Length (Decimal Inch) | 6.2835 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
