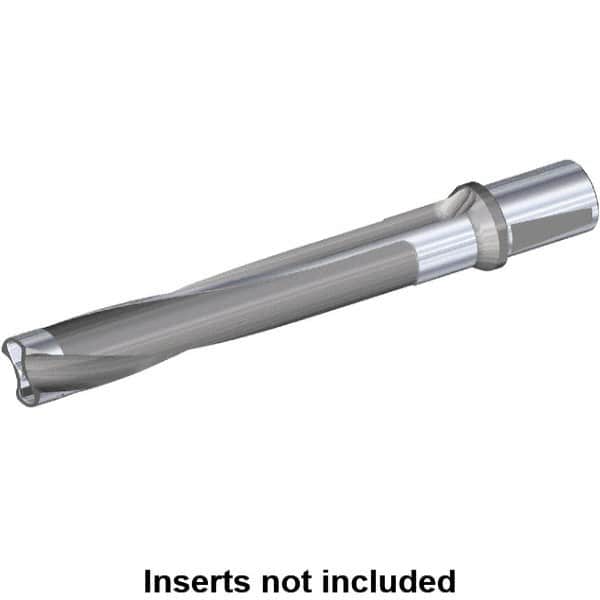

Kennametal - Series KSEM Plus, Head Connection FDS28, 5xD, 32mm Shank Diam, Drill Body - WD Toolholder, 26.5mm Nose Diam, 248mm OAL, 190mm Drill Body Length, 133mm Flute Length, Whistle Notch Shank, Through Coolant
Item #: 55012322
Brand: Kennametal
Model #: 4051136
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS28 |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Toolholder Style | WD |
| Nose Diameter (mm) | 26.50 |
| Nose Diameter (Decimal Inch) | 1.0433 |
| Overall Length (mm) | 248.00 |
| Overall Length (Decimal Inch) | 9.7638 |
| Gage Length (mm) | 190.00 |
| Gage Length (Decimal Inch) | 7.4803 |
| Flute Length (mm) | 133.00 |
| Flute Length (Decimal Inch) | 5.2362 |
| Shank Type | Whistle Notch |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2835 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/8-27 |
