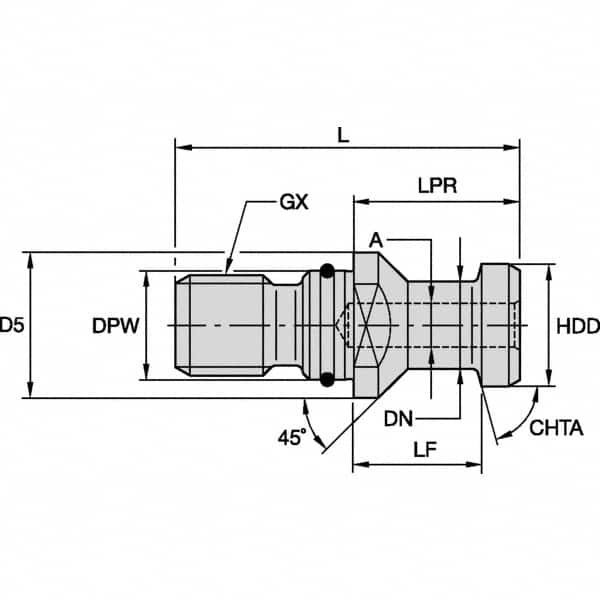

Kennametal - B Style, DV40 Taper, M16x2 Thread, 75° Angle Radius, Standard Retention Knob - 2-1/8" OAL, 0.7468" Knob Diam, 1.0236" from Knob to Flange, 0.6681" Pilot Diam, 0.2776" Coolant Hole, Through Coolant
Item #: 58518655
Brand: Kennametal
Model #: 1192423
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | DV40 |
| Thread Size | M16x2 |
| Angle Radius | 75.00 |
| Knob Diameter (Decimal Inch) | 0.7468 |
| Through Coolant | Yes |
| Style | B |
| Neck Diameter (Decimal Inch) | 0.5492 |
| Pilot Diameter (Decimal Inch) | 0.6681 |
| Overall Length (Decimal Inch) | 2.1260 |
| Knob to Flange Length (Decimal Inch) | 1.0236 |
| Coolant Hole Diameter (Decimal Inch) | 0.2776 |
