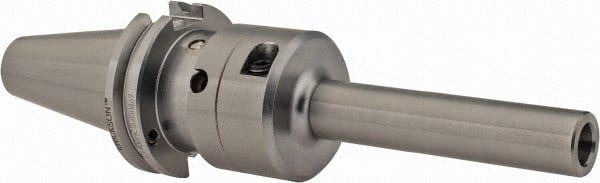

Kennametal - CAT40 Taper Shank, 1/2" Hole Diam, Hydraulic Tool Holder/Chuck - 19.56mm Nose Diam, 169.93mm Projection, 36.07mm Clamp Depth, 15,000 RPM, Through Coolant
Item #: 60245800
Brand: Kennametal
Model #: 2508153
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 1/2 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 12.70 |
| Nose Diameter (Decimal Inch) | 0.7700 |
| Nose Diameter (mm) | 19.56 |
| Projection (Decimal Inch) | 6.6900 |
| Projection (mm) | 169.93 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 36.07 |
| Clamping Depth (Decimal Inch) | 1.4200 |
| Overall Length (mm) | 238.18 |
| Overall Length (Decimal Inch) | 9.3770 |
| Balanced to (RPM) | 15000 |
