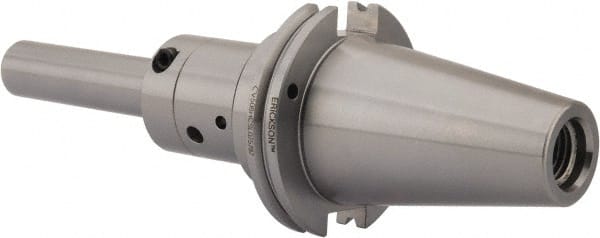

Kennametal - CAT50 Taper Shank, 3/4" Hole Diam, Hydraulic Tool Holder/Chuck - 26.92mm Nose Diam, 199.9mm Projection, 40.89mm Clamp Depth, 15,000 RPM, Through Coolant
Item #: 60245867
Brand: Kennametal
Model #: 2508158
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Hole Diameter (mm) | 19.05 |
| Nose Diameter (Decimal Inch) | 1.0600 |
| Nose Diameter (mm) | 26.92 |
| Projection (Decimal Inch) | 7.8700 |
| Projection (mm) | 199.90 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 40.89 |
| Clamping Depth (Decimal Inch) | 1.6100 |
| Overall Length (mm) | 301.50 |
| Overall Length (Decimal Inch) | 11.8700 |
| Balanced to (RPM) | 15000 |
