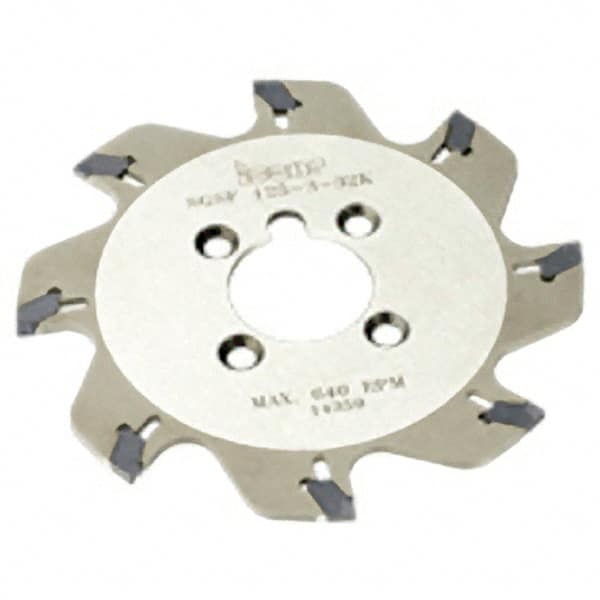

Iscar - Arbor Hole Connection, 2.3228" Depth of Cut, 7.87" Cutter Diam, 1-1/2" Hole Diam, 14 Tooth Indexable Slotting Cutter - SGSF Toolholder, GSFN Insert
Item #: 60823424
Brand: Iscar
Model #: 2300698
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 59.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.3228 |
| Cutter Diameter (Decimal Inch) | 7.8700 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 14 |
| Toolholder Style | SGSF |
| Series | Self-Grip(SGSA) |
| Insert Style | GSFN |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 400 |
| Minimum Cutting Width (Decimal Inch) | 0.1390 |
| Maximum Cutting Width (Decimal Inch) | 0.1780 |
| Hub Diameter (Decimal Inch) | 3.1500 |
