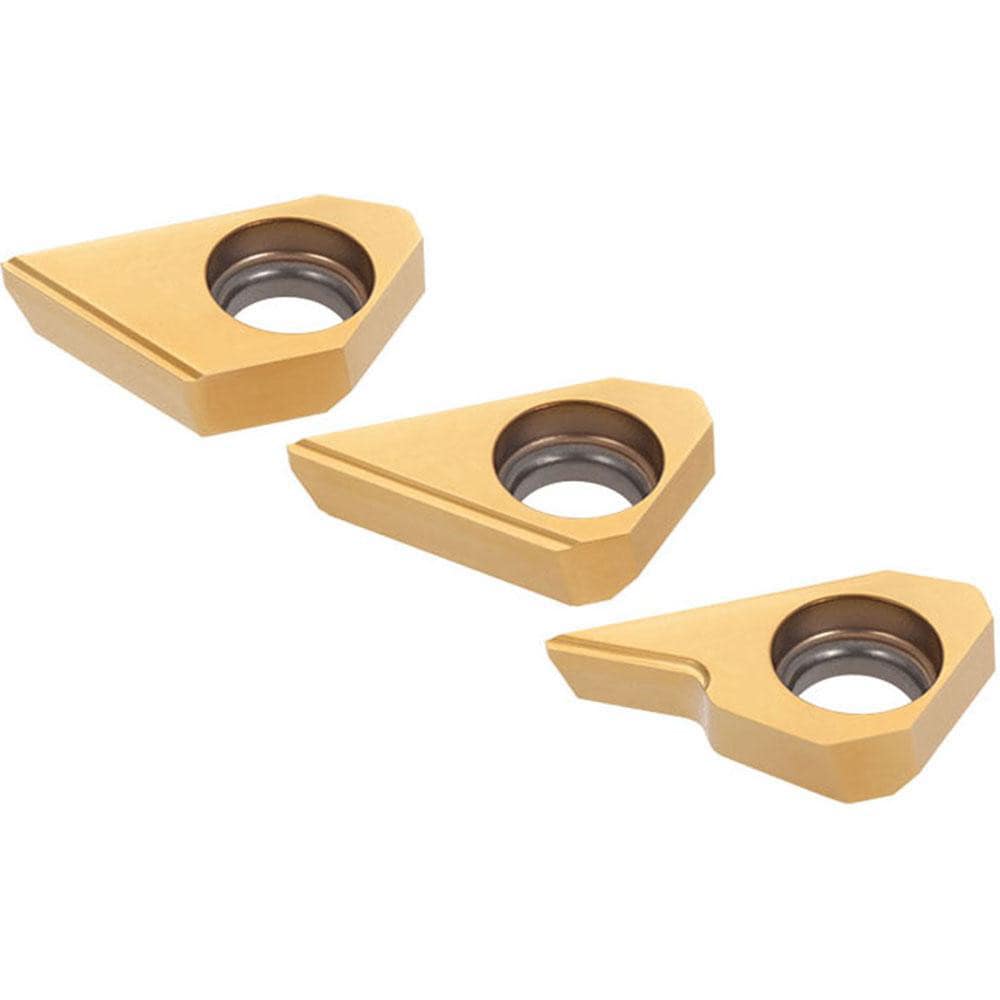

Drill Chamfer Inserts; Insert Style: XHGX; Insert Size Code: 090300; Insert Material: Carbide; Insert Thickness: 0.1300 in; Insert Shape: Irregular; Manufacturer Grade: GH730; Inscribed Circle: 9.00 mm; Chamfer Angle: 30.000
Item #: 73315111
Brand: Tungaloy
Model #: 5505647
Product Specifications
| Insert Style | XHGX |
| Insert Size Code | 090300 |
| Insert Material | Carbide |
| Insert Thickness | 0.1300 in |
| Insert Shape | Irregular |
| Manufacturer Grade | GH730 |
| Inscribed Circle | 9.00 mm |
| Chamfer Angle | 30.000 |
| Chipbreaker | None |
| Series | XHGX |
| Coated | Coated |
| Coating | TiCNO |
| Coating Process | PVD |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| UNSPSC Code | 23242105 |
| Insert Style | XHGX |
| Insert Size Code | 090300 |
| Insert Material | Carbide |
| Insert Thickness | 0.1300 in |
| Insert Shape | Irregular |
| Manufacturer Grade | GH730 |
| Inscribed Circle | 9.00 mm |
| Chamfer Angle | 30.000 |
| Chipbreaker | None |
| Series | XHGX |
| Coated | Coated |
| Coating | TiCNO |
| Coating Process | PVD |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| UNSPSC Code | 23242105 |
| MSC Part # | 73315111 |
| Mfr Part # | 5505647 |
| Country of Origin Country of Origin is subject to change | Japan |
