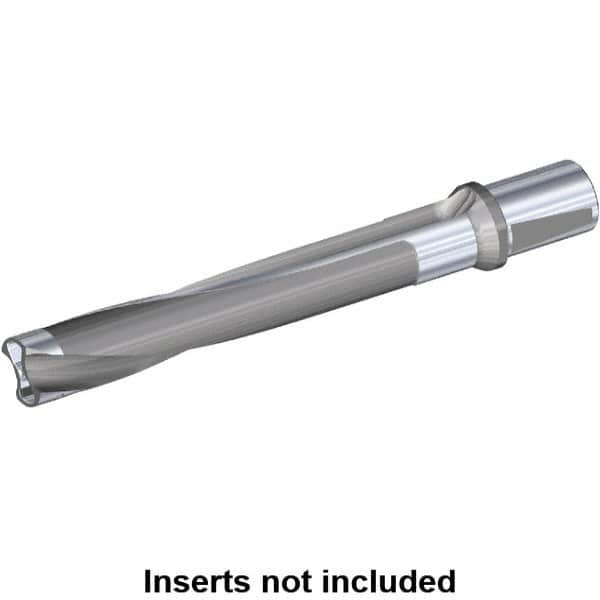

Kennametal - Series KSEM Plus, Head Connection FDS36, 3xD, 32mm Shank Diam, Drill Body - 117mm Drill Body Length to Flange, WD Toolholder, 224mm OAL, 117mm Drill Body Length, 97mm Flute Length, Whistle Notch Shank, Through Coolant
Item #: 62341623
Brand: Kennametal
Model #: 3950220
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS36 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Drill Body Length to Flange (mm) | 117.00 |
| Drill Body Length to Flange (Decimal Inch) | 4.6063 |
| Toolholder Style | WD |
| Overall Length (mm) | 224.00 |
| Overall Length (Decimal Inch) | 8.8189 |
| Gage Length (mm) | 117.00 |
| Gage Length (Decimal Inch) | 4.6063 |
| Flute Length (mm) | 97.00 |
| Flute Length (Decimal Inch) | 3.8189 |
| Shank Type | Whistle Notch |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
| Through Coolant | Through Coolant |
| Includes | Clamping Screws; Wrench |
