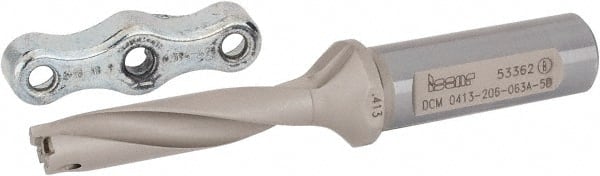

Iscar - 0.413 to 0.429" Diam, 5xD, 2.06" Max Depth, 5/8" Shank Diam, 4.53" OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series ChamDrill
Item #: 63106454
Brand: Iscar
Model #: 3200542
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (Decimal Inch) | 0.4130 |
| Maximum Drill Diameter (Decimal Inch) | 0.4290 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.0600 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 2.6400 |
| Overall Length (Decimal Inch) | 4.5300 |
| Shank Length (Decimal Inch) | 1.8900 |
