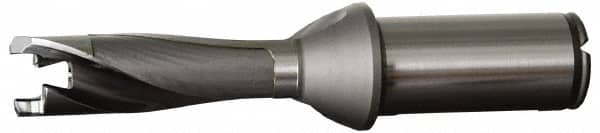

Kennametal - 20 to 20.99mm Diam, 5xD, 105mm Max Depth, 63/64" Shank Diam, 131mm Flute, 193mm OAL, Replaceable Tip Drill - KTIP2000HPM Insert, Y Seat Size, Series KenTIP
Item #: 63787410
Brand: Kennametal
Model #: 3017678
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 20.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (mm) | 20.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.8264 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 105.00 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Insert Style | KTIP2000HPM |
| Insert Seat Size | Y |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 3.40 |
| Flute Length (mm) | 131.00 |
| Flute Length (Decimal Inch) | 5.1575 |
| Body Length (mm) | 137.00 |
| Overall Length (mm) | 193.00 |
| Shank Length (mm) | 56.00 |
