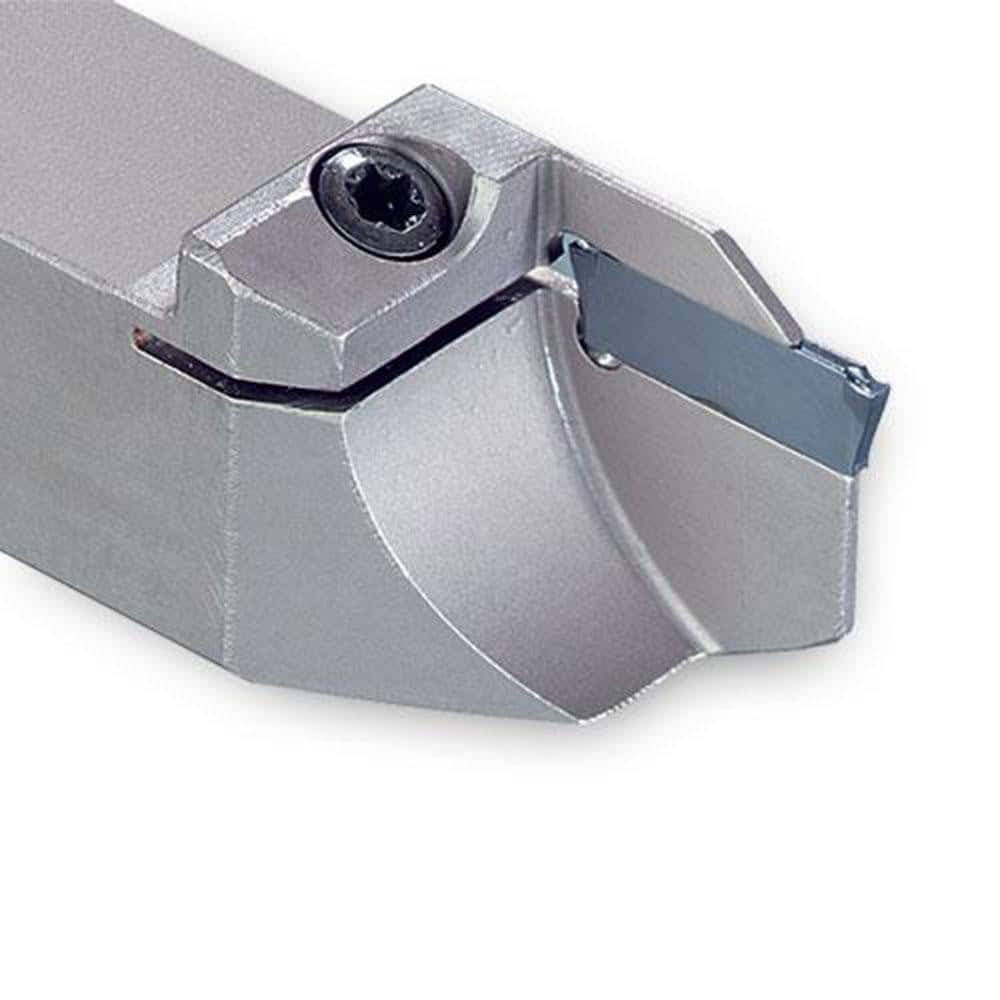

Indexable Grooving Toolholder: TTEL12.7-24-3SH, 0.0950″ Max Groove Width 0.4700″ Max Depth, Uses TD 3 & TS 3 Inserts, 0.5000″ Shank Height, 1/2″ Shank Width, No
Item #: 64857139
Brand: Ingersoll Cutting Tools
Model #: 2801861
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 3 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Minimum Groove Width (Decimal Inch) | 0.1040 |
| Toolholder Style | TTEL |
| Maximum Groove Width (Decimal Inch) | 0.0950 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 3; TS 3 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Height (Inch) | 1/2 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | TTER/L-SH |
| Shank Length (Decimal Inch) | 4.2500 |
| Shank Length (Inch) | 4-1/4 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Maximum Workpiece Diameter (Decimal Inch) | 0.9400 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (Decimal Inch) | 0.7500 |
| Head Length (Inch) | 3/4 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
