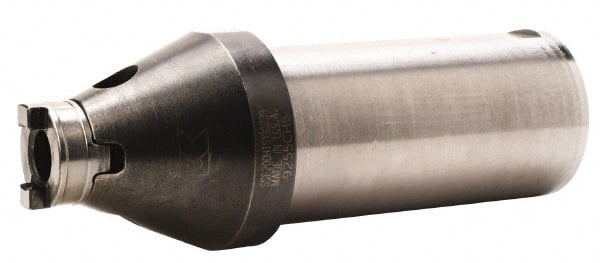

Kennametal - Series HTS, Head Connection 13A, 1-1/2" Shank Diam, Drill Body - 9.14" Drill Body Length to Flange, SSF Toolholder, 25mm Nose Diam, 378.3mm OAL, 283.05mm Drill Body Length, Weldon Flat Shank, Through Coolant
Item #: 65073470
Brand: Kennametal
Model #: 1937137
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 13A |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Drill Body Length to Flange (Decimal Inch) | 9.1400 |
| Toolholder Style | SSF |
| Nose Diameter (mm) | 25.00 |
| Nose Diameter (Decimal Inch) | 0.9800 |
| Overall Length (mm) | 378.30 |
| Overall Length (Decimal Inch) | 14.8937 |
| Gage Length (mm) | 283.05 |
| Gage Length (Decimal Inch) | 11.1400 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 3.7500 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/8-27 |
| Number of Shank Flats | 2 |
| Includes | Clamping screw; Drive Ring; Side Pipe Plug |
