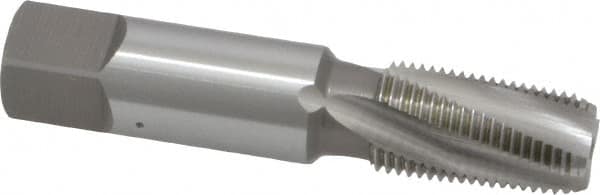

OSG - 1/8-27 NPTF, 15° Helix, 4 Flutes, Bottoming Chamfer, Bright Finish, High Speed Steel, Spiral Flute Pipe Tap - Right Hand Flute, 5/16" Shank Diam, 3/4" Thread Length, 0.2344" Projection, 0.234" Square Size,
Item #: 65091175
Brand: OSG
Model #: 1250600
Exact Tooling IR#: 04
Features and Benefits
NPTF (National Pipe Taper Fuel) refers to Dryseal American National Standard Tapered Pipe Threads. They do not require a sealant due to being formed by metal to metal contact.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Short projection pipe taps are used for shallow hole applications. They are ideal, for the internal threading of pipes and pipe fittings.
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/8-27 |
| Thread Standard | NPTF |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Tap Type | Spiral Fluted Short Projection |
| Number of Flutes | 4 |
| Helix Angle | 15 |
| Overall Length (Inch) | 2-1/8 |
| Thread Length (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Square Size (Decimal Inch) | 0.2340 |
| Material Application | Aluminum; Carbon Steel; Cast Iron; Hardened Steel |
| Flute Direction | Right Hand |
| Projection (Decimal Inch) | 0.2344 |
| Chamfer | Bottoming |
