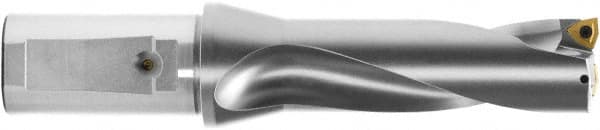

Komet - 116mm Max Drill Depth, 4xD, 29mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Combination Shank
Item #: 66237132
Brand: Komet
Model #: V4592902
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V45 |
| Drill Diameter (mm) | 29.00 |
| Drill Diameter (Decimal Inch) | 1.1417 |
| Maximum Drill Depth (mm) | 116.00 |
| Maximum Drill Depth (Decimal Inch) | 4.5669 |
| Shank Type | Combination |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2598 |
| Maximum Drill Diameter (mm) | 32.00 |
| Overall Length/Projection (mm) | 200.00 |
| Overall Length/Projection (Decimal Inch) | 7.8740 |
| Insert Compatibility | WOEX 05T304 |
| Body Length (Decimal Inch) | 5.5118 |
| Body Length (mm) | 140.00 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Series | KUB Trigon |
