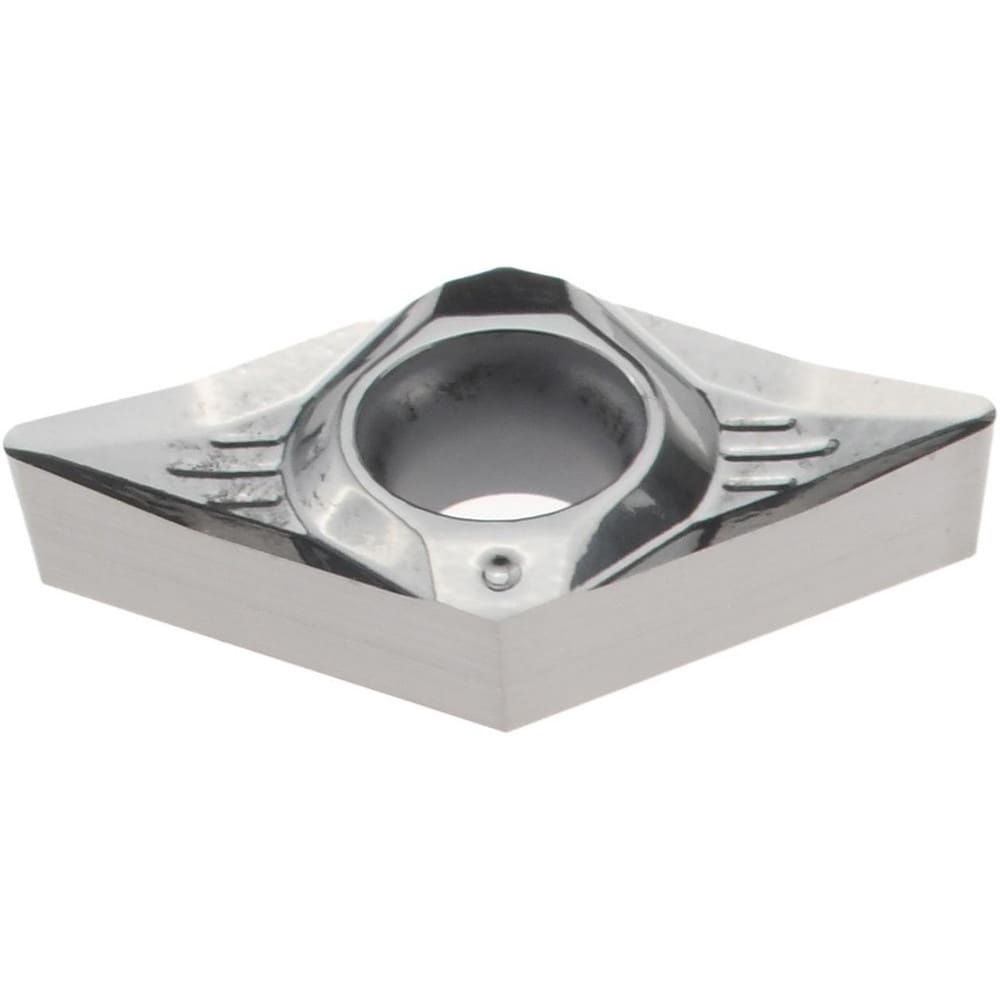

Turning Insert: DCGT070204FNLMF+ACN15K, Carbide
Item #: 75333104
Brand: Accupro
Model #: 75333104
Product Specifications
| ANSI Insert Code | DCGT21.51 |
| ISO Insert Code | DCGT070204 |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | ACN15K |
| Coating/Finish | Polished |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1114 |
| Maximum Depth of Cut (mm) | 1.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.0531 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | K; N |
| Standards | ANSI Code: DCGT21.51 |
| Chip Breaker | LMF+ |
| ANSI Size Code | 21.51 |
| ISO Size Code | 070204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 07 |
| ANSI Insert Code | DCGT21.51 |
| ISO Insert Code | DCGT070204 |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | ACN15K |
| Coating/Finish | Polished |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1114 |
| Maximum Depth of Cut (mm) | 1.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.0531 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | K; N |
| Standards | ANSI Code: DCGT21.51 |
| Chip Breaker | LMF+ |
| ANSI Size Code | 21.51 |
| ISO Size Code | 070204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 07 |
| MSC Part # | 75333104 |
| Mfr Part # | 75333104 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
