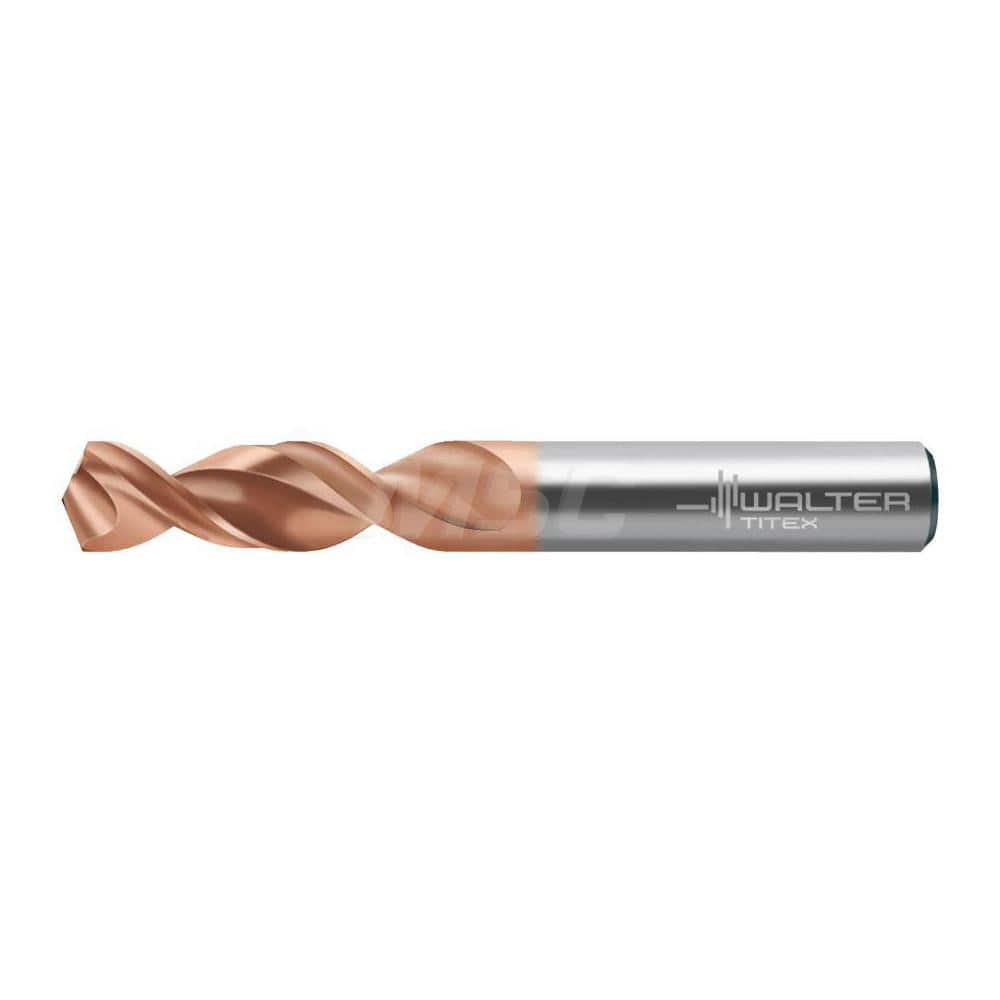

Screw Machine Length Drill Bit: 0.0827″ Dia, 130 °, Cobalt Coated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series A1149XPL
Item #: 70189949
Brand: Walter-Titex
Model #: 5236404
Product Specifications
| Drill Bit Size (mm) | 2.10 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 130 |
| Flute Type | Parabolic |
| Point Type | Conical+U |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0827 |
| Drill Bit Size (Decimal Inch) | 0.0827 |
| Overall Length (mm) | 38.00 |
| Overall Length (Decimal Inch) | 1.4961 |
| Shank Diameter (mm) | 2.10 |
| Series | A1149XPL |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.3150 |
| Maximum Drilling Depth (mm) | 8.00 |
| Shank Length (Decimal Inch) | 1.0236 |
| Shank Length (mm) | 26.00 |
| Drill Point Length (mm) | 0.49 |
| Drill Point Length (Decimal Inch) | 0.0193 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | h8 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 0.4724 |
| Flute Length (mm) | 12.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
| Material Grade | M35 |
 | |
| MSC Part # | 70189949 |
| Mfr Part # | 5236404 |
| Country of OriginCountry of Origin is subject to change | Brazil |
