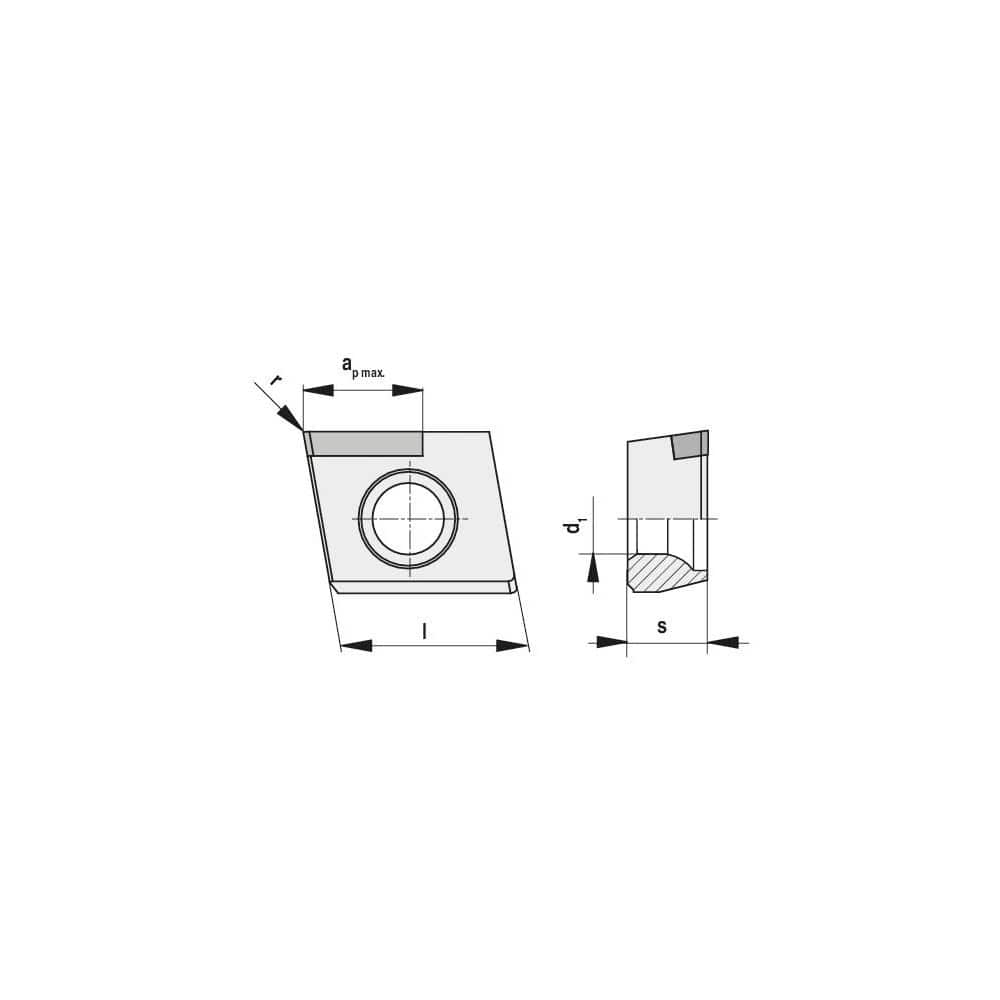

Milling Insert: ZNHW 04T305ER-1204 CTL3215, CTL3215, Cubic Boron Nitride N/A Finish,
Item #: 73573743
Brand: Ceratizit
Model #: 5113785500
Product Specifications
| Insert Style | ZNHW |
| Insert Size Code | 04T3 |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | CTL3215 |
| Inscribed Circle (Decimal Inch) | 0.2756 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Insert Hand | Right Hand |
| Relief Angle | 0.00 |
| Series | ZNHW |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.1574 |
| Number Of Cutting Edges | 1 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4331 |
| Insert Shape | Diamond |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Iso Code | ZNHW 04T305ER-1204 CTL3215 |
| Chip Breaker | None |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
