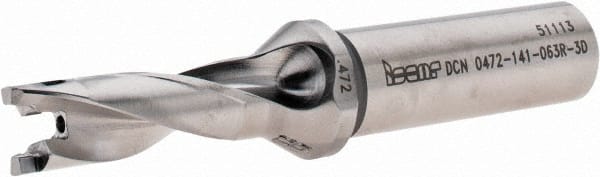

Iscar - 0.472" to 0.488" Diam, 3xD, 1.41" Max Depth, 5/8" Shank Diam, 3.98" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 73822975 Toolholder, Series SumoCham
Item #: 73822975
Brand: Iscar
Model #: 3202789
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.4720 |
| Maximum Drill Diameter (Decimal Inch) | 0.4880 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.4100 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 2.0900 |
| Overall Length (Decimal Inch) | 3.9800 |
| Shank Length (Decimal Inch) | 1.8900 |
