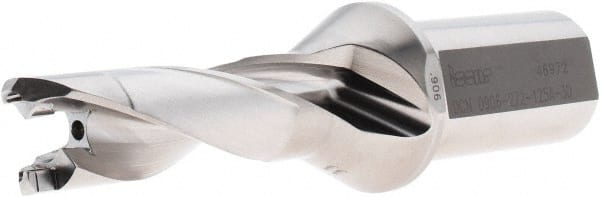

Iscar - 29/32" to 0.941" Diam, 3xD, 2.72" Max Depth, 1-1/4" Shank Diam, 6.51" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 23 Seat Size, 74323932 Toolholder, Series SumoCham
Item #: 74323932
Brand: Iscar
Model #: 3260102
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.9060 |
| Maximum Drill Diameter (Decimal Inch) | 0.9410 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.7200 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 23 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 4.1500 |
| Overall Length (Decimal Inch) | 6.5100 |
| Shank Length (Decimal Inch) | 2.3600 |
