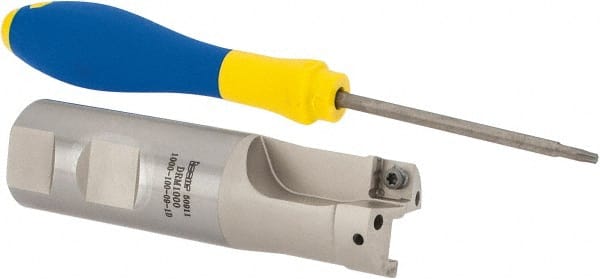

Iscar - 1" Max Drill Depth, 1xD, 1" Diam, Indexable Insert Drill - 1" Shank Diam, Straight Shank
Item #: 75066522
Brand: Iscar
Model #: 3260042
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DRM |
| Drill Diameter (Inch) | 1 |
| Drill Diameter (Decimal Inch) | 1.0000 |
| Maximum Drill Depth (Decimal Inch) | 1.0000 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 1xD |
| Overall Length/Projection (Decimal Inch) | 3.7800 |
| Insert Compatibility | SOMT-DT; SOMT-GF; SOMT-HD |
| Body Length (Decimal Inch) | 1.5000 |
| Shank Length (Decimal Inch) | 2.2800 |
| Series | DRDRILLS |
