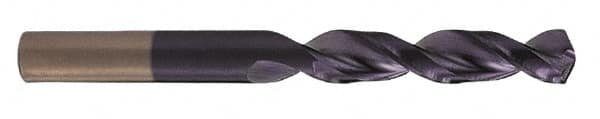

Screw Machine Length Drill Bit: 0.177″ Dia, 135 °, Cobalt TiN Finish, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 2175T
Item #: 75906024
Brand: Cleveland
Model #: C14377
Product Specifications
| Drill Bit Size (Wire) | #16 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Drill Point Angle | 135 |
| Flute Type | Parabolic |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1770 |
| Drill Bit Size (Decimal Inch) | 0.1770 |
| Overall Length (Inch) | 2-3/16 |
| Series | 2175T |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Flute Length (Inch) | 1-1/8 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Specification Designation | ANSI |
| Material Grade | M42 |
