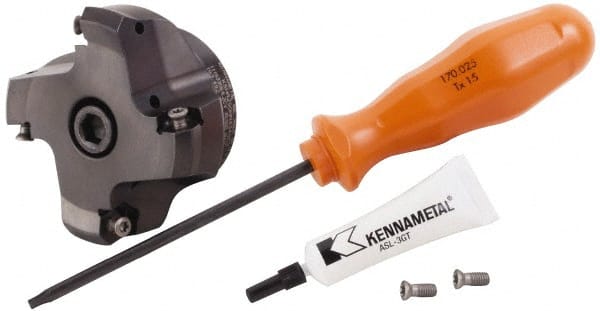

Kennametal - 2" Cut Diam, 3/4" Arbor Hole, 3.23mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 4 Inserts, HNGJ 0604... Insert, Right Hand Cut, 4 Flutes, Through Coolant, Series Dodeka Mini
Item #: 76913110
Brand: Kennametal
Model #: 4130431
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (mm) | 71.65 |
| Cutting Diameter (Decimal Inch) | 2.8210 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | HNGJ 0604... |
| Series | Dodeka Mini |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.23 |
| Maximum Depth of Cut (Decimal Inch) | 0.1270 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 4 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Hub Diameter (mm) | 44.45 |
| Maximum Body Diameter (Decimal Inch) | 2.7270 |
| Maximum RPM | 10000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNGJ 0604ANENLD |
