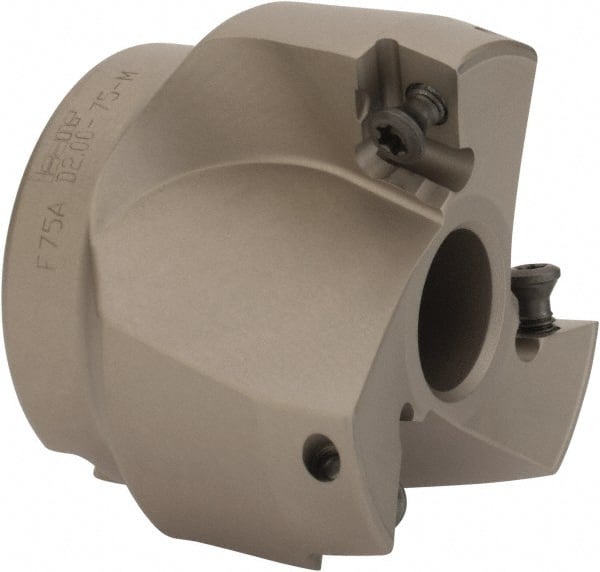

Iscar - 4 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 0.827" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2" High, HP AD.. 2207.. Insert Compatibility, Series HP F90AT
Item #: 77881860
Brand: Iscar
Model #: 3103492
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | HP AD.. 2207.. |
| Series | HP F90AT |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.8270 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | HP F90AT-22 |
| Number of Flutes | 4 |
| Complete Insert Compatibility | ADCR 2207; ADKT; HP ADCT |
