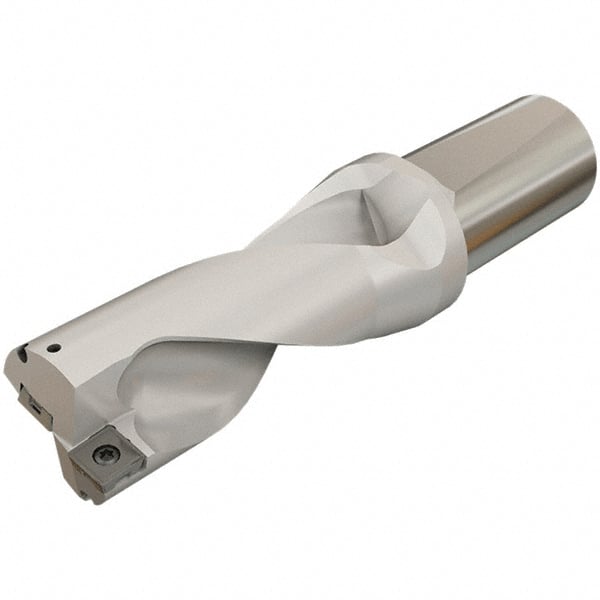

Iscar - 78mm Max Drill Depth, 2xD, 39mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 78712387
Brand: Iscar
Model #: 3201771
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 39.00 |
| Drill Diameter (Decimal Inch) | 1.5354 |
| Maximum Drill Depth (mm) | 78.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 42.50 |
| Overall Length/Projection (mm) | 172.00 |
| Insert Compatibility | SOMT-DT; SOMT-GF |
| Body Length (mm) | 114.00 |
| Shank Length (mm) | 58.00 |
| Collar Diameter (mm) | 50.00 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | G1/2-1 |
